Improving Energy Efficiency Across a Large-Scale Steam Pipeline Network

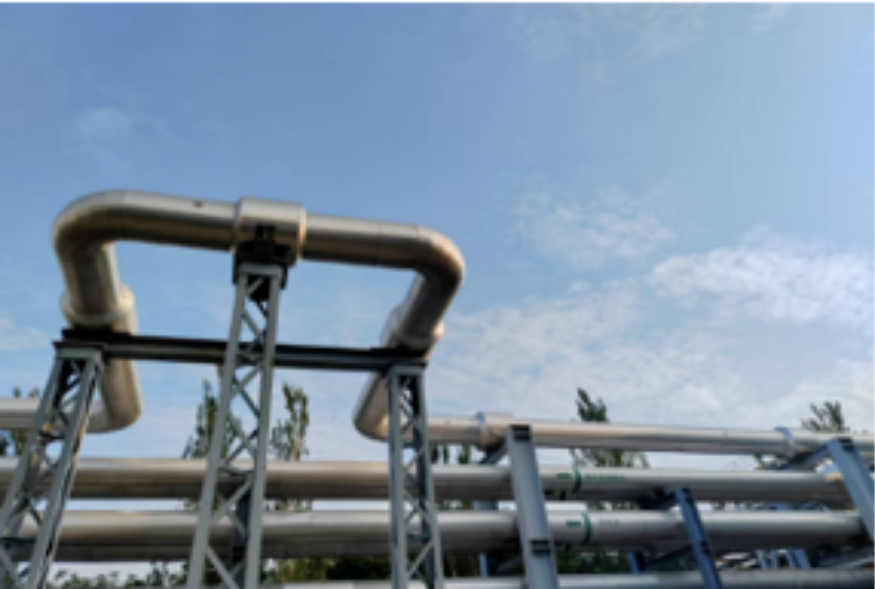

Overhead steam distribution pipelines with aerogel blanket insulation and protective cladding.
10.8 km PIPELINE NETWORK | 5,692.33 TCE / YEAR | RMB 8.1M ANNUAL BENEFIT | 15+ Years SERVICE LIFE |
A large industrial processing facility operated an extensive steam distribution network serving multiple production units. After years of continuous operation, the existing insulation system experienced aging, increasing thermal losses, and declining energy efficiency.
To improve thermal performance and reduce operating costs, the facility upgraded its steam pipeline insulation system using silica aerogel blanket insulation.
The project covered a large-scale steam network carrying both high-pressure and medium-pressure steam, where minimizing heat loss and improving long-term insulation performance were key objectives.
Project team reviewing silica aerogel blanket insulation on site before pipeline installation.
APPLICATION | INDUSTRY Industrial Processing | NETWORK LENGTH 10,821.8 m |
OPERATING MEDIUM HP & MP Steam | INSULATION MATERIAL | ANNUAL ENERGY SAVINGS 5,692.33 tce |
As the existing insulation system aged, the facility began facing several operational challenges:
Increased thermal losses along steam pipelines
Declining insulation performance
Elevated surface temperatures
Higher maintenance requirements
Increased energy consumption
Reduced overall system efficiency
Because the network extended over 10 km, even relatively small heat losses generated significant annual energy waste and operating costs.
The facility selected silica aerogel blanket insulation to upgrade the steam distribution network.
Key performance characteristics included:
The insulation system was applied to both high-pressure and medium-pressure steam pipelines throughout the network.
| Industry | Industrial Processing |
| Application | Steam Pipeline Insulation |
| Pipeline Network | Large-Scale Steam Distribution System |
| Network Length | 10,821.8 m |
| Operating Medium | Steam |
| Insulation Material | Silica Aerogel Blanket |
| Service Environment | High-Temperature Industrial Process |
BEFORE UPGRADE • Conventional insulation materials • Reduced thermal performance due to aging • Higher heat-loss rates • Larger insulation thickness • Increased maintenance requirements | AFTER UPGRADE • Silica aerogel blanket insulation system • Improved thermal efficiency • Reduced heat losses • Reduced insulation thickness • Lower maintenance requirements • Improved long-term insulation performance |
Following completion of the insulation upgrade, significant improvements in energy efficiency and thermal performance were reported.
| Pipeline Network Length | 10,821.8 m |
| Annual Energy Savings | 5,692.33 tce |
| Annual Economic Benefit | RMB 8.1 Million |
| Thermal Losses | Significantly Reduced ↓ |
| Maintenance Requirements | Reduced ↓ |
| Expected Service Life | More Than 15 Years |
* Performance results are based on project operating conditions and may vary depending on system design, operating temperatures, insulation thickness, installation quality, and environmental exposure.
BENEFIT 01 Reduced Heat Loss The low thermal conductivity of silica aerogel blanket insulation helped reduce thermal losses across the steam distribution network. | BENEFIT 02 Improved Energy Efficiency Lower heat losses improved steam utilization efficiency and reduced overall energy waste. | BENEFIT 03 Reduced Insulation Thickness Aerogel blanket insulation achieved the required thermal performance with substantially less thickness than many conventional insulation systems. |
BENEFIT 04 Hydrophobic Performance The insulation system provided resistance to moisture intrusion, helping maintain long-term insulation performance. | BENEFIT 05 Reduced Maintenance Requirements Improved durability helped reduce maintenance frequency and long-term operating costs. | BENEFIT 06 Long-Term Thermal Stability The insulation system was designed to maintain reliable performance under demanding industrial operating conditions. |
The same insulation approach can be considered for:
This project demonstrates the effectiveness of silica aerogel blanket insulation for large-scale industrial steam distribution networks where energy efficiency, insulation reliability, and lifecycle performance are critical.
By upgrading conventional insulation systems with aerogel blanket insulation, industrial facilities can reduce thermal losses, improve energy efficiency, and lower long-term operating costs while maintaining a more compact insulation profile.

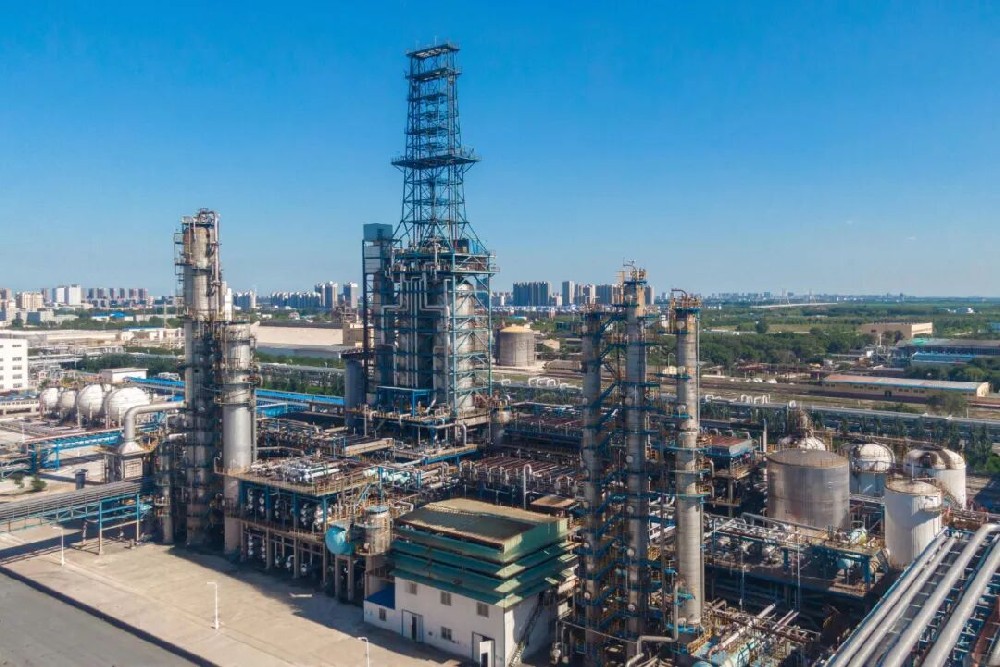

Large-scale steam pipeline network serving multiple production units at the industrial facility.
